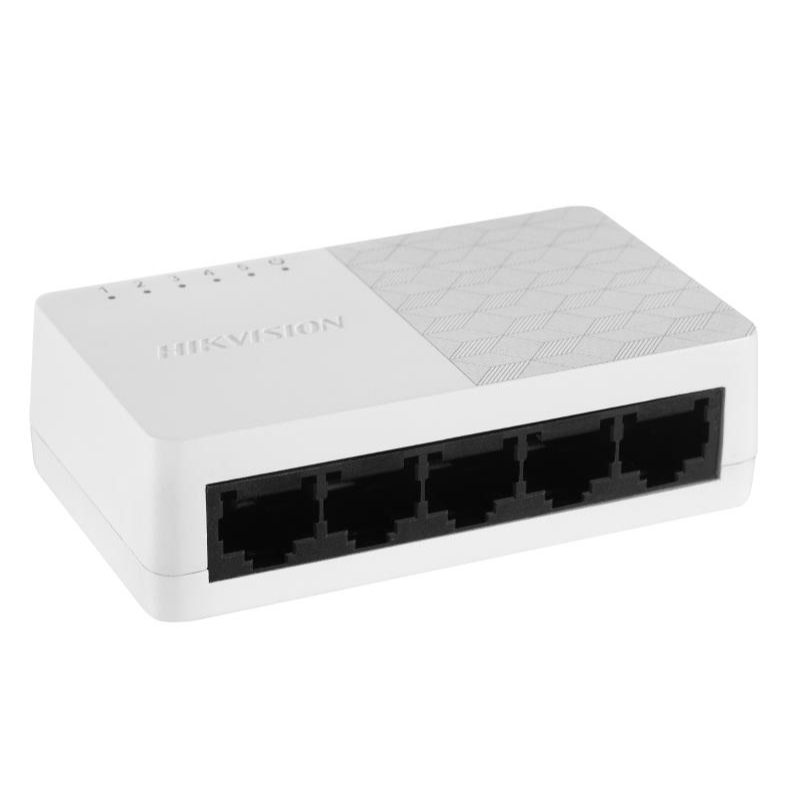

HikVision DS-3E0105D-O 5-Port Fast Ethernet Switch

General

• ShellABS
• Net Weight0.093 kg (0.205 lb)
• Dimensions (W × H × D)83.00 mm × 22.00 mm × 52.00 mm (3.27'' × 0.87'' × 2.05'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply5 VDC, 0.6 A
• Installation ModeDesk-Mounted
• Max. Power Consumption3 W
• Surge Protection2 KV

Network Parameters

• Ports5 × 10/100 Mbps RJ45 port
• MAC Address Table2 K
• Switching Capacity1 Gbps
• Packet Forwarding Rate0.74 Mpps
• Internal Cache768Kbits

Approval

• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
