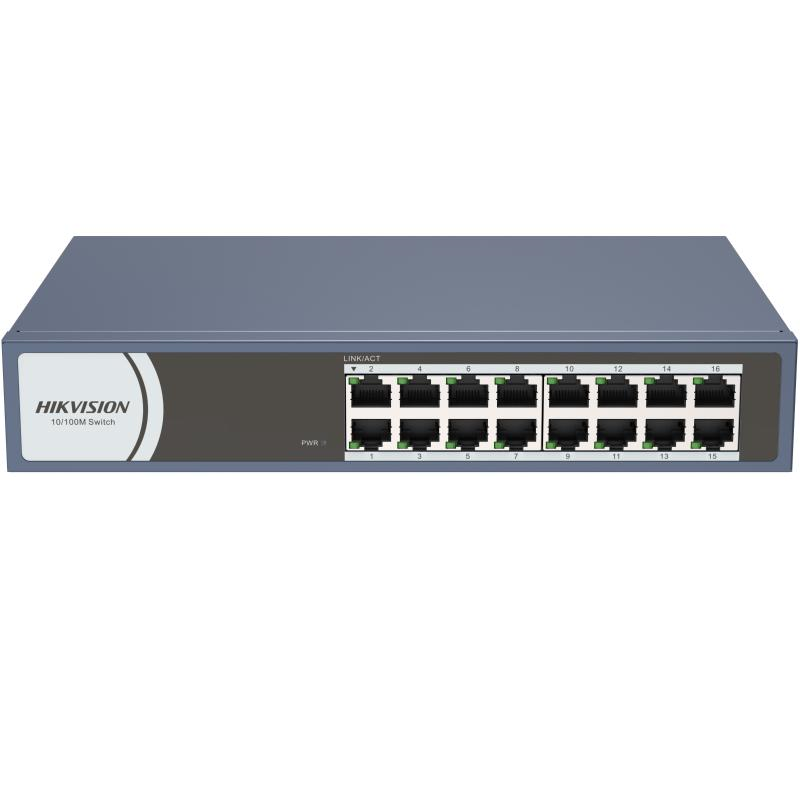

HikVision DS-3E0116R-O 16-Port Fast Ethernet Switch

General

• ShellMetal material, fan-free design
• Net Weight1.1 kg (2.42 lb)
• Gross Weight1.5 kg (3.3 lb)
• Dimensions (W × H × D)257..0 mm × 44.5 mm × 175.8 mm (10.118'' × 1.751'' × 6.921'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply220 VAC, 50/60 Hz
• Max. Power Consumption6.6 W
• Power Consumption in Idle<6.6 W
• Surge Protection6 KV

Network Parameters

• Ports16 × 10/100 Mbps RJ45 port
• MAC Address Table8 K
• Switching Capacity3.2 Gbps
• Packet Forwarding Rate2.38 Mpps
• Internal Cache2 Mbits

Approval

• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
