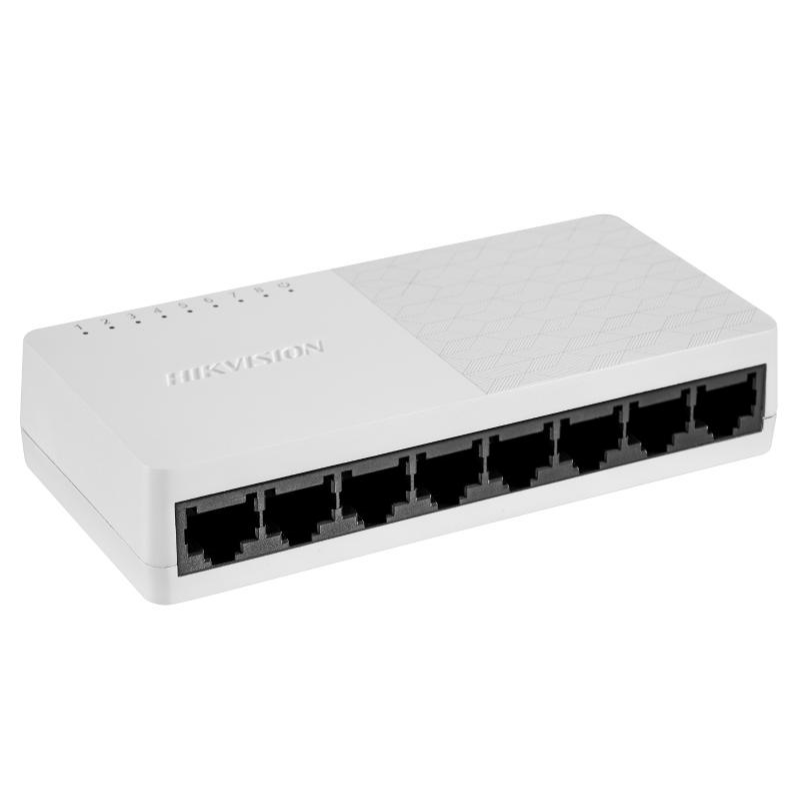

HikVision DS-3E0508D-O 8-Port Gigabit Switch

General

• Shell ABS
• Net Weight0.093 kg (0.205 lb)
• Dimensions (W × H × D)124.00 mm × 25.00 mm × 61.00 mm (4.88'' × 0.98'' × 2.40'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply5 VDC, 1 A
• Installation Mode Desk-Mounted
• Max. Power Consumption5 W
• Surge Protection2 KV

Network Parameters

• Ports8 × Gigabit RJ45 port
• MAC Address Table4 K
• Switching Capacity16 Gbps
• Packet Forwarding Rate11.90 Mpps
• Internal Cache1.5 Mbits

Approval

• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
