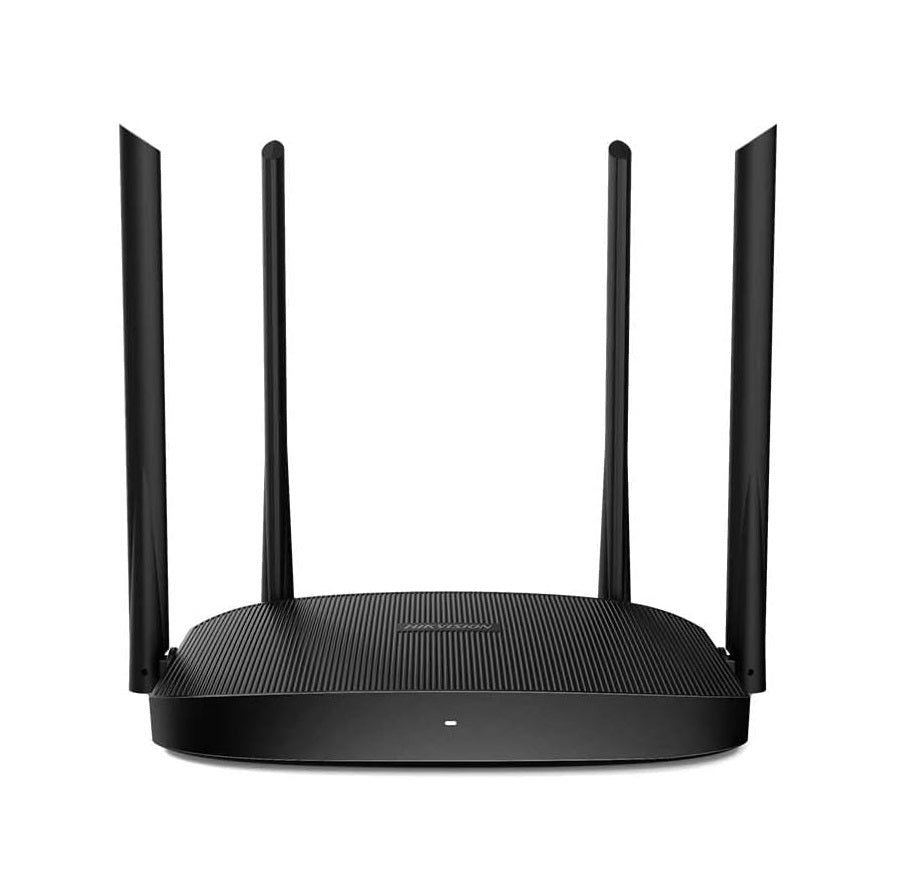

HikVision DS-3WR12GC AC1200 Dual Band Gigabit Port Wireless Router

General

• Product Dimension (W × H × D)248.40 mm × 154.80 mm × 213.34 mm (9.78"× 6.09"× 8.40")
• Package Dimension (W × H × D)306 mm × 290 mm × 59 mm (12.05"× 11.42"× 2.32")
• Net Weight0.238 kg (0.525 lb)
• Packing ListWireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
• Packing MethodSingle pack
• Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity10% to 90% RH non-condensing
• Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity5% to 90% RH non-condensing
• Installation ModeDesktop installation
• Max. Power Consumption≤ 9 W
• Gross Weight0.738 kg (1.627 lb)

Wireless Parameter

• Data Rate
• ≤ 1167 Mbps
• 2.4 GHz: 300 Mbps
• 5 GHz: 867 Mbps
• Wireless StandardIEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
• Transmitting Power18 dBm
• Wireless Performance
• 4 × 4 MU-MIMO supported
• Beamforming supported
• Receiving Sensitivity
• 58 ± 2 dB@AC80 -MCS9
• 84 ± 2 dB@AC80 -MCS0
• Antenna4 high gain antennas

Hardware Parameter

• Network Interface4 × RJ45, 10/100/1000 Mbps auto-negotiation
• LED IndicatorLED indicator
• ResetReset button
• Power Supply Method9 VDC, 1 A power adapter power supply
• Power Specifications9 VDC, 1 A

Software Function

• Application function
• Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
• DHCP Server supported
• Guest Network Configuration supported
• Signal Adjustment supported
• WiFi Schedule supported
• Security ModeWPA-PSK, WPA2-PSK, WPA and WPA2 supported
• Security MechanismHide SSID
• Management MethodWeb
• UpgradeWeb Update and Upgrade
• System LogSystem log
