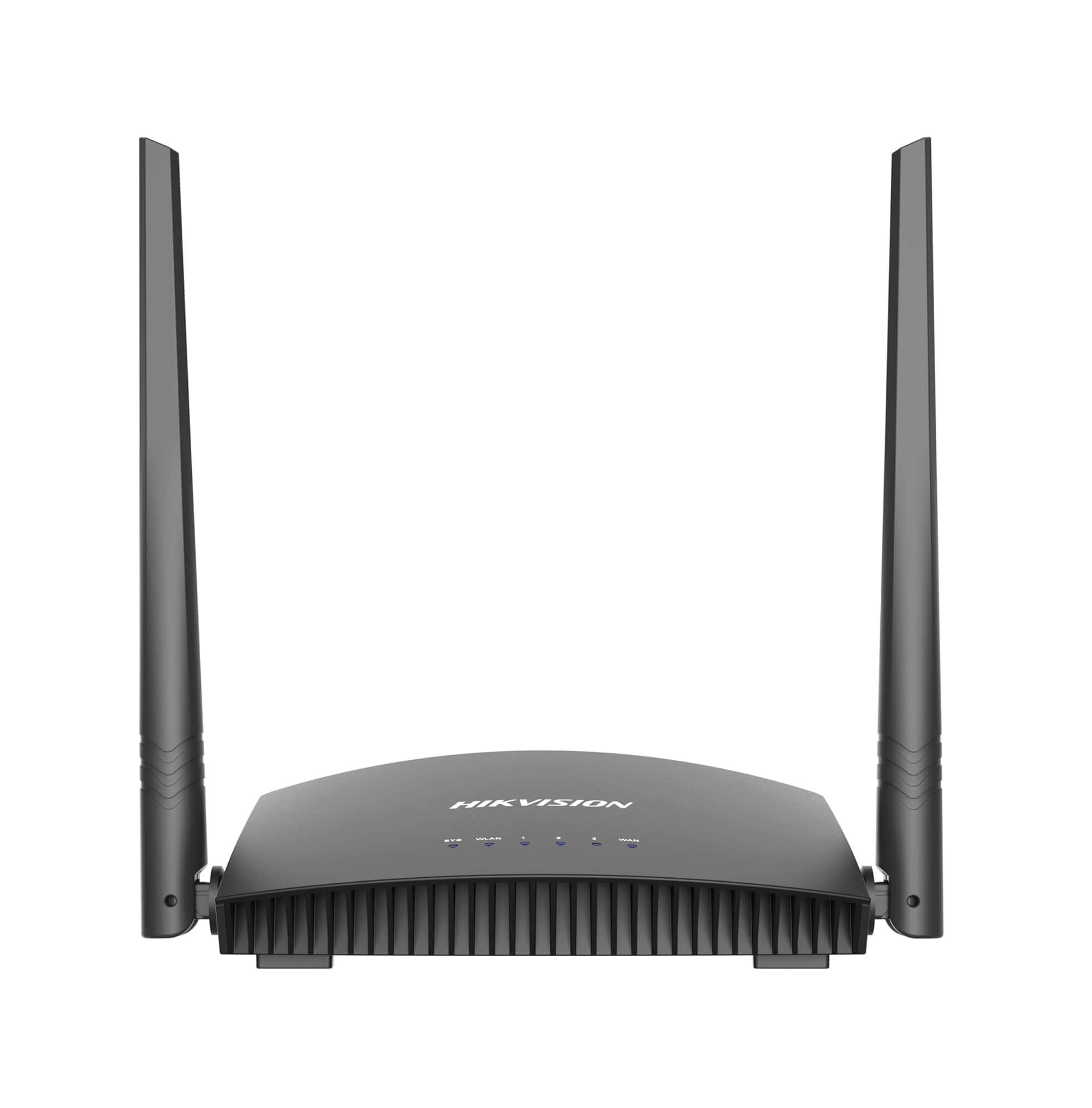

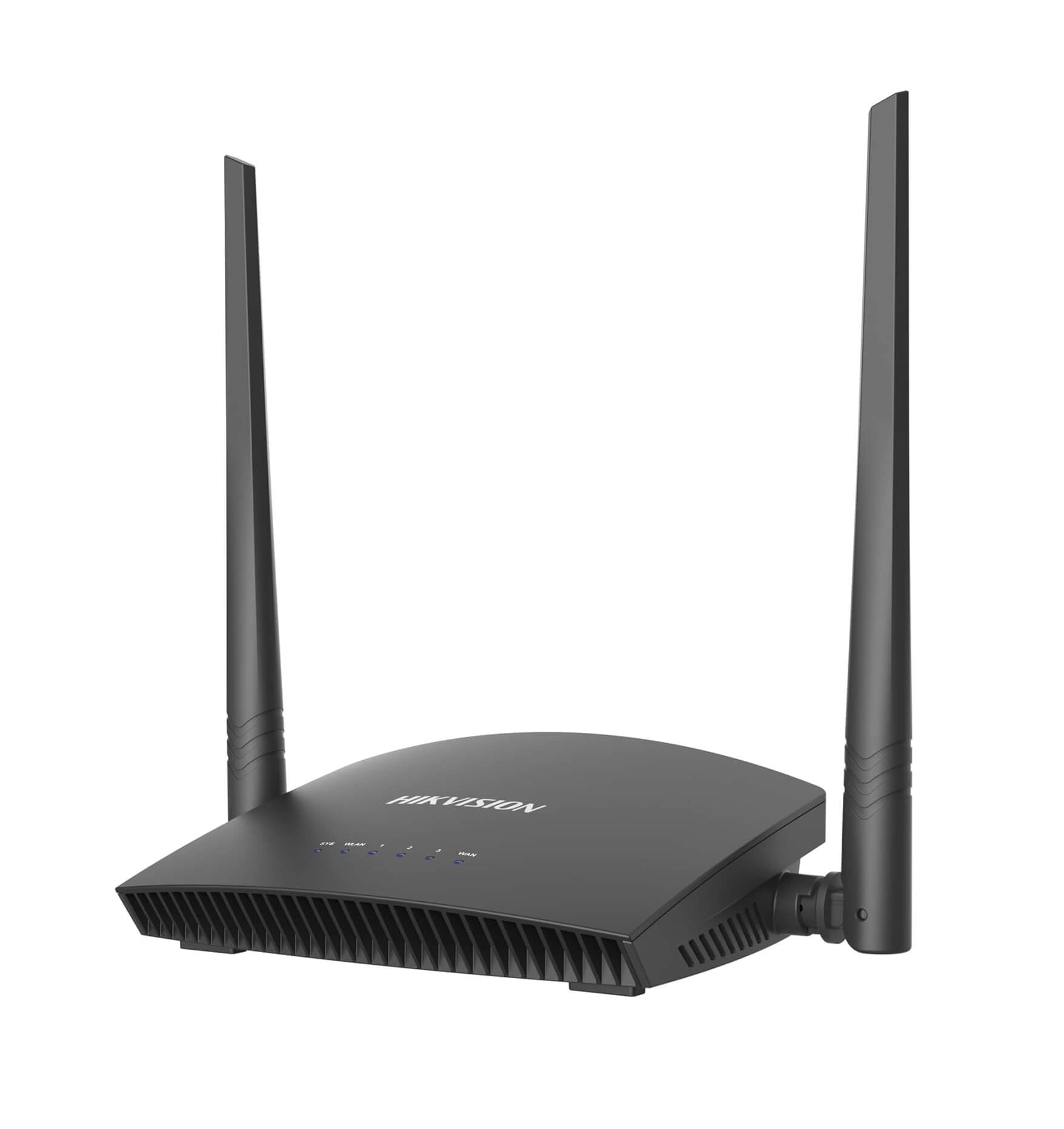

HikVision DS-3WR3N 300M Wireless Router

General

• Product Dimension (W × H × D)174.82 mm × 96.45 mm × 181.06 mm (6.88"× 3.80"× 7.13")
• Package Dimension (W × H × D)231 mm × 203 mm × 51 mm (9.09"× 7.99"× 2.01")
• Net Weight0.134 kg (0.295 lb)
• Packing List Wireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
• Packing Method Single pack
• Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity10% to 90% RH non-condensing
• Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity5% to 90% RH non-condensing
• Installation Mode Desktop installation
• Max. Power Consumption≤ 5.4 W
• Gross Weight0.634 kg (1.398 lb)

Wireless Parameter

• Data Rate2.4 GHz: 300 Mbps
• Wireless Standard IEEE 802.11b/g/n @2.4 GHz
• Transmitting Power18 dBm
• Wireless Performance Beam forming supported
• Receiving Sensitivity58 ± 2 dB@AC80 -MCS984 ± 2 dB@AC80 -MCS0
• Antenna2 high gain antennas

Hardware Parameter

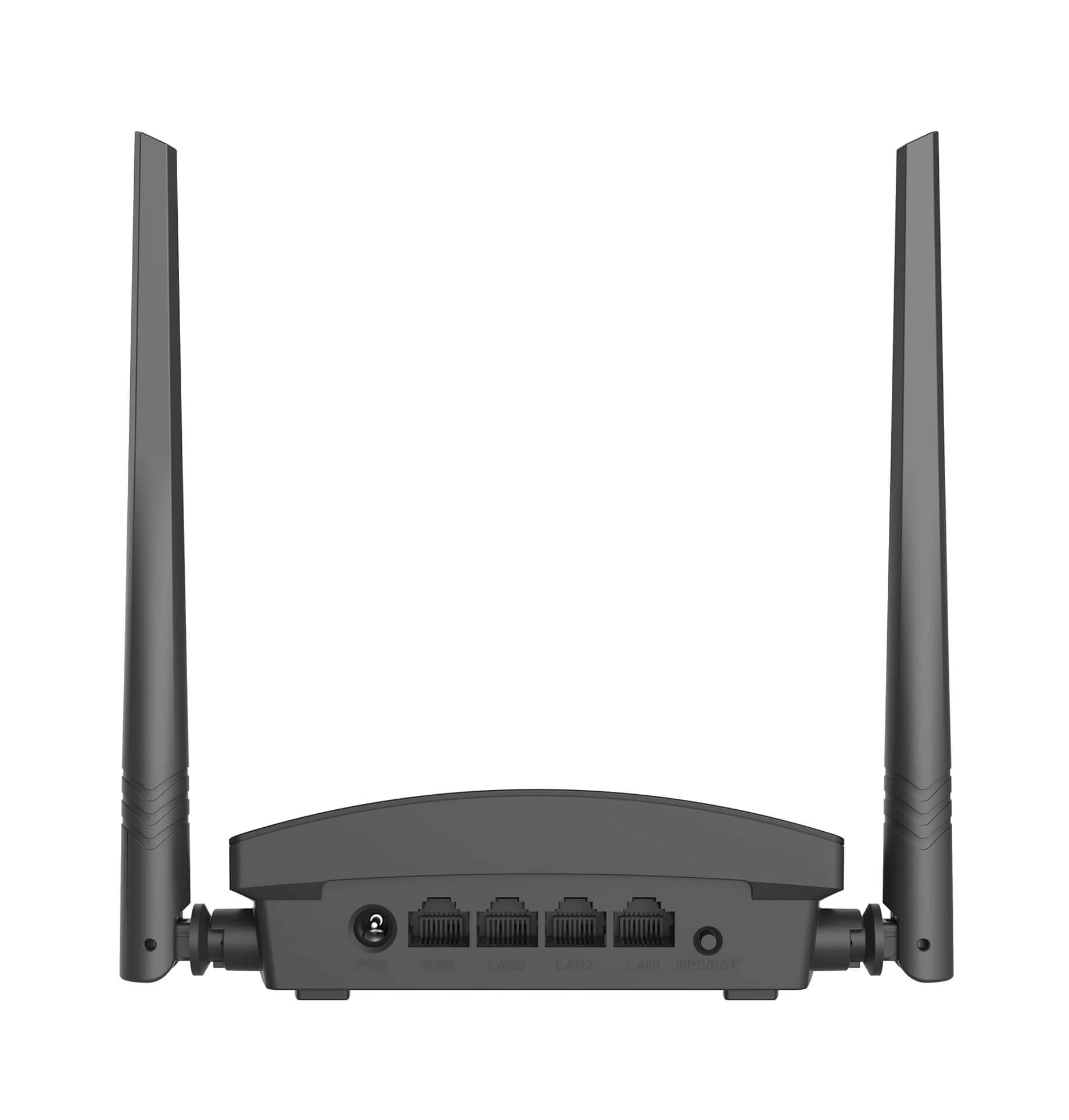

• Network Interface4 × RJ45, 10/100 Mbps auto-negotiation
• LED IndicatorLED indicator
• ResetReset button
• Power Supply Method9 VDC, 1 A power adapter power supply
• Power Specifications9 VDC, 1 A

Software Function

• Application function Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supportedDHCP Server supportedGuest Network Configuration supported Signal Adjustment supportedWiFi Schedule supported
• Security Mode WPA-PSK/WPA2-PSK, WPA/WPA2
• Security Mechanism Hide SSID
• Management Method Web
• Upgrade Web Update and Upgrade
• System Log System log
