xProduct Overview

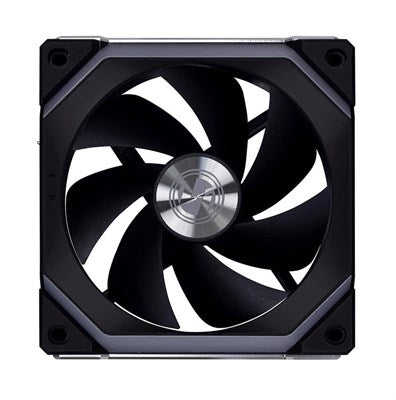

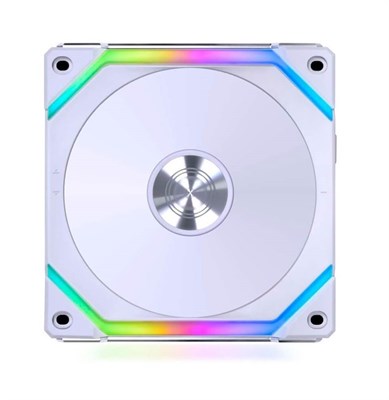

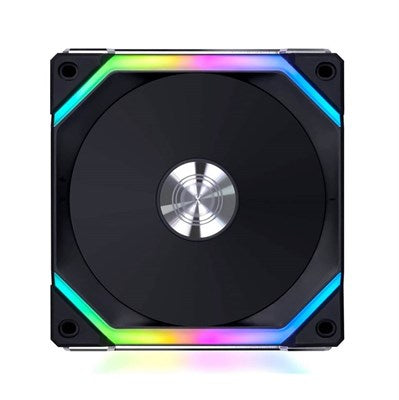

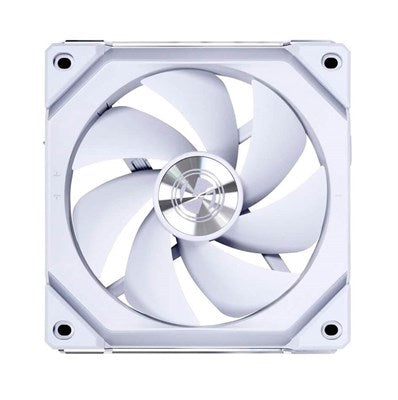

The Lian Li UNI FAN SL120 V2 RGB 120mm Computer Case Fan is an advanced cooling solution designed to meet the needs of PC enthusiasts and builders. Known for its innovative design and exceptional performance, the SL120 V2 offers an optimal balance of cooling efficiency and aesthetic appeal. With improved airflow, quieter operation, and customizable RGB lighting, this fan is perfect for enhancing the cooling system and visual appeal of any PC build.
Product Description
The Lian Li UNI FAN SL120 V2 RGB 120mm Computer Case Fan is the second iteration of the highly successful SL120 series, offering upgraded features and improved performance. This version includes enhanced airflow and static pressure, quieter operation, and a more refined design that integrates seamlessly with modern PC builds.
One of the standout features of the SL120 V2 is its modular design, allowing for easy daisy-chaining of multiple fans. This reduces cable clutter and simplifies installation, making it an ideal choice for both novice and experienced PC builders. The fan's RGB lighting is fully customizable, with a variety of lighting effects and synchronization options available through Lian Li's software.
Key Features
Enhanced Airflow and Static Pressure: The SL120 V2 offers improved airflow (up to 64.5 CFM) and static pressure (up to 2.54 mmH2O), ensuring efficient cooling for high-performance systems.
Modular Design: The innovative daisy-chain feature allows multiple fans to be connected with a single cable, reducing cable clutter and simplifying installation.
Customizable RGB Lighting: The fan features vibrant RGB lighting with multiple effects and synchronization options, customizable via Lian Li's software.
Quiet Operation: Advanced bearing technology and optimized fan blade design ensure quieter operation, with noise levels as low as 20 dBA.
Durable Construction: Made with high-quality materials, the SL120 V2 is built to last and withstand the demands of continuous operation.
Easy Installation: The modular design and included accessories make the installation process straightforward and hassle-free.
PWM Control: Pulse Width Modulation (PWM) control allows for dynamic speed adjustments based on system temperature, ensuring optimal performance and noise balance.
Compatibility: The fan is compatible with most modern PC cases and cooling systems, making it a versatile addition to any build.
Specifications
|
Model Name |
UNI FAN SL V2 120 |
UNI FAN SL V2 140 |
|
||||
|
Model No. |
UF-SL120V2-3B BLACK |
UF-SL120V2-3W WHITE |
UF-SL120V2-1B BLACK |
UF-SL120V2-1W WHITE |
UF-SL140V2-1B BLACK |
UF-SL140V2-1W WHITE |
|
|
Color |
Black |
White |
Black |
White |
Black |
White |
|
|
Number Of Fans |
3 |
3 |
1 |
1 |
1 |
1 |
|
|
Controller |
Yes |
No |
No |
|
|||
|
Connector Type |
4 × 7-PIN |
1 × 4-PIN PWM |
1 × 4-PIN PWM |
|
|||
|
Material |
PBT/PC/Aluminum) |
|
|||||
|
Rated Voltage |
DC 12V (FAN) & 5V (LED) |
|
|||||
|
Fan Dimension |
120 X 120 X 28 (mm) |
140 X 140 X 25 (mm) |
|
||||
|
Fan Speed |
0, 250~2000 RPM |
0, 250~1600 RPM |
|
||||
|
Max. Air Pressure |
2.59 mmH2O (Maximum) |
2.09 mmH2O (Maximum) |
|
||||
|
Max. Airflow |
64.5 CFM (Maximum) |
77.6 CFM (Maximum) |
|
||||
|
Acoustic Noise |
29.2 dB(A) Max |
29 dB(A) Max |
|
||||
|
Locked Current |
0(Automatic Protection) |
|
|||||
|
Bearing Type |
Fluid Dynamic Bearing (FDB) |
|
|||||
|
Operate Voltage |
DC12V & 5V |
|
|||||
|
Start-Up Voltage |
?5V |
|
|||||
|
Input Current |
0.17A |
0.11A |
|||||
|
Input Power |
2.04W |
1.32W |
|||||
