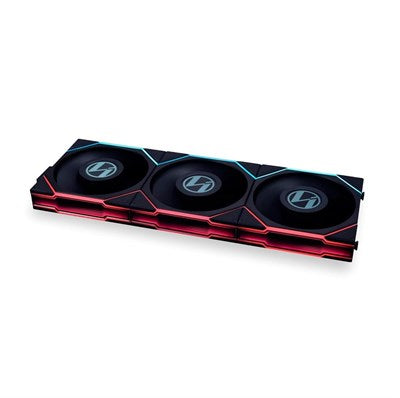

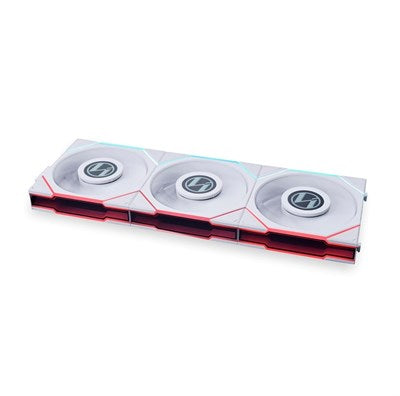

xLian Li UNI Fan TL LCD 120 ARGB Case Fans - Triple Pack
Product Overview
The Lian Li UNI Fan TL LCD 120 ARGB Case Fans in a triple pack is an advanced cooling solution designed for PC enthusiasts and builders who seek both high performance and eye-catching aesthetics. This innovative product from Lian Li features addressable RGB lighting and an LCD display on each fan, offering dynamic lighting effects and real-time system information display. With a focus on modular design, ease of installation, and superior cooling performance, these fans are ideal for enhancing both the functionality and visual appeal of any PC build.
Product Description
The Lian Li UNI Fan TL LCD 120 ARGB Case Fans are a perfect blend of style and substance. Each fan in this triple pack features a sleek design with an integrated LCD screen capable of displaying real-time system information such as temperatures, fan speeds, and customizable graphics. The addressable RGB lighting adds a vibrant touch, allowing users to synchronize the fans with other RGB components in their system for a cohesive and stunning light show.
Designed with modularity in mind, these fans can be daisy-chained together using a single cable, reducing cable clutter and simplifying the installation process. The fans offer exceptional cooling performance, thanks to their optimized blade design and high static pressure, ensuring efficient airflow through your system's critical components.
Key Features

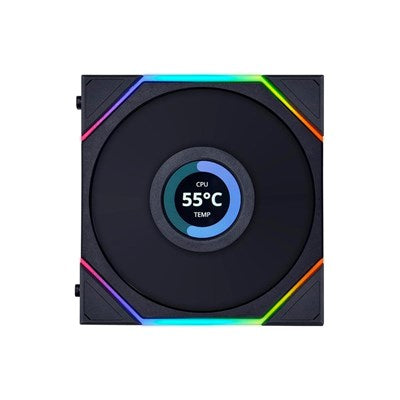

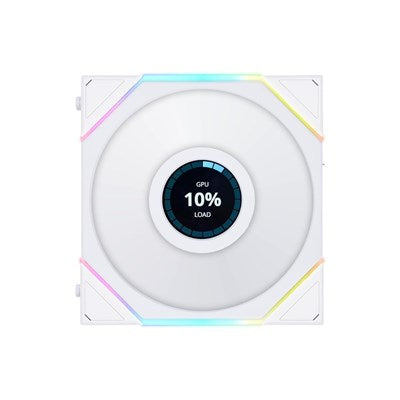

LCD Display: Each fan is equipped with an LCD screen that can display system information, custom graphics, and animations.
Addressable RGB Lighting: Fully customizable ARGB lighting provides a wide range of effects and synchronization with other ARGB components.
Modular Design: Daisy-chain multiple fans using a single cable to reduce cable clutter and simplify installation.
Superior Cooling Performance: Optimized blade design ensures high airflow and static pressure, providing efficient cooling for high-performance systems.
Quiet Operation: Engineered for silent performance, these fans produce minimal noise even at higher speeds.
High-Quality Construction: Built with durable materials to ensure long-term reliability and performance.
PWM Control: Supports PWM (Pulse Width Modulation) control for precise speed adjustments based on system temperatures.
Easy Installation: Includes all necessary accessories and a user-friendly design for quick and easy setup.
Compatibility: Compatible with a wide range of PC cases and cooling configurations.
Specifications
|
Model Name |
UNI FAN TL LCD 120 |
UNI FAN TL LCD 140 |
||||
|
Model No. |
12TLLCD3B |
12TLLCD3W |
12TLLCD1B |
12TLLCD1W |
14TLLCD1B |
14TLLCD1W |
|
Color |
BLACK |
WHITE |
BLACK |
WHITE |
BLACK |
WHITE |
|
Number Of Fans |
3 |
3 |
1 |
1 |
1 |
1 |
|
Controller |
Yes |
No |
NO |
|||
|
Connector Type |
UNI FAN Controller Cable x 1 (P-7P) |
UNI FAN Controller Cable x 1 (P-7P) |
UNI FAN Controller Cable x 1 (P-7P) |
|||
|
Fan Dimension |
124 x 120 x 28 mm |
144 X 140 X 28 (mm) |
||||
|
Fan Speed |
0, 350~1900 RPM |
0, 400~1600 RPM |
||||
|
Max. Air Pressure |
2.9 mmH2O (Maximum) |
3.5 mmH2O (Maximum) |
||||
|
Max. Airflow |
62 CFM (Maximum) |
68.1 CFM (Maximum) |
||||
|
Acoustic Noise |
27 dB(A) Max |
28.5 dB(A) Max |
||||
|
Input Power |
7.08W |
6.72W |
||||
|
Material |
PA66 / PBT |
|||||
|
Rated Voltage |
DC 12V (FAN) & 5V (LED) |
|||||
|
Bearing Type |
Fluid Dynamic Bearing (FDB) |
|||||
|
Operate Voltage |
DC12V & 5V |
|||||
