Description

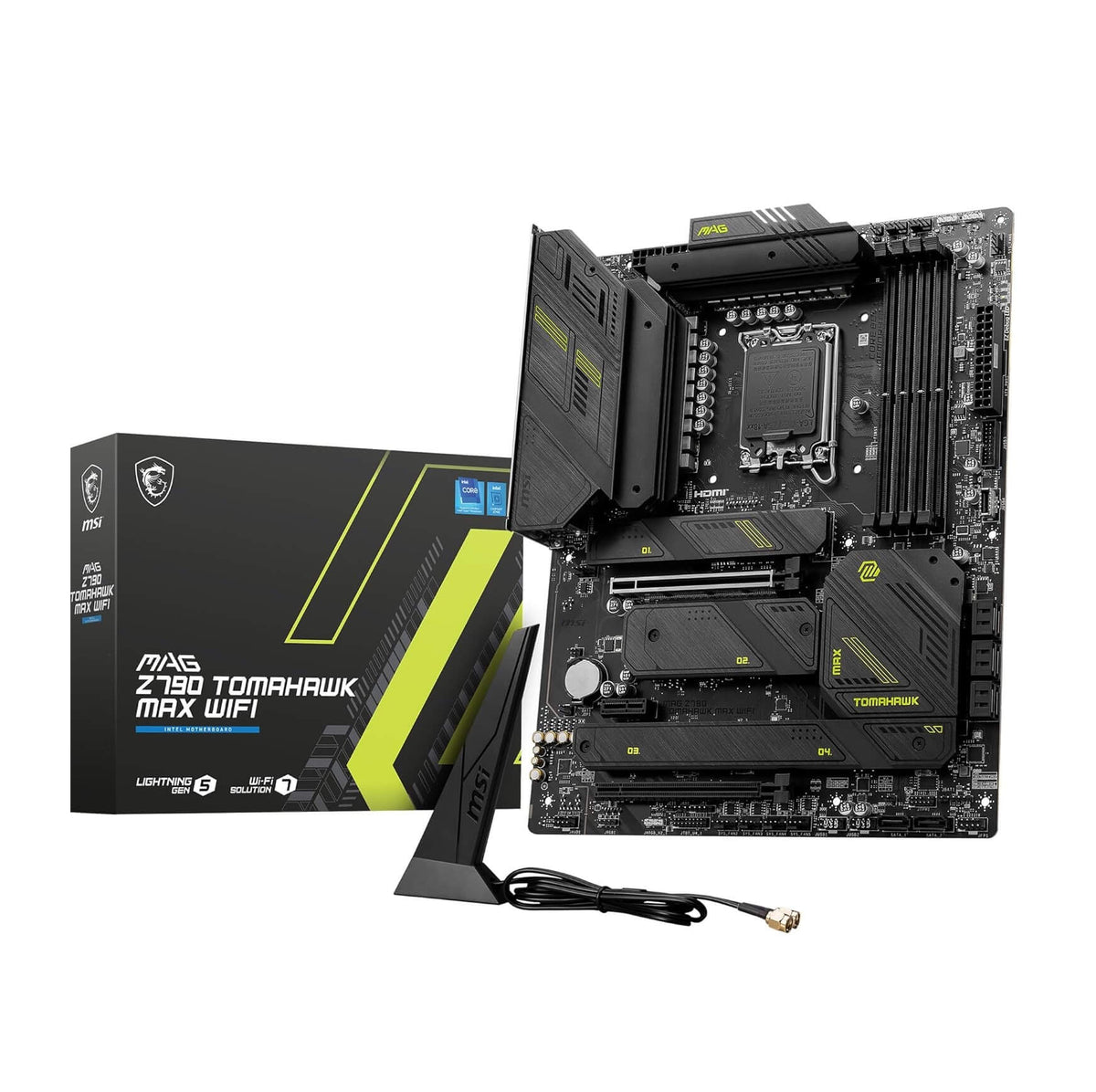

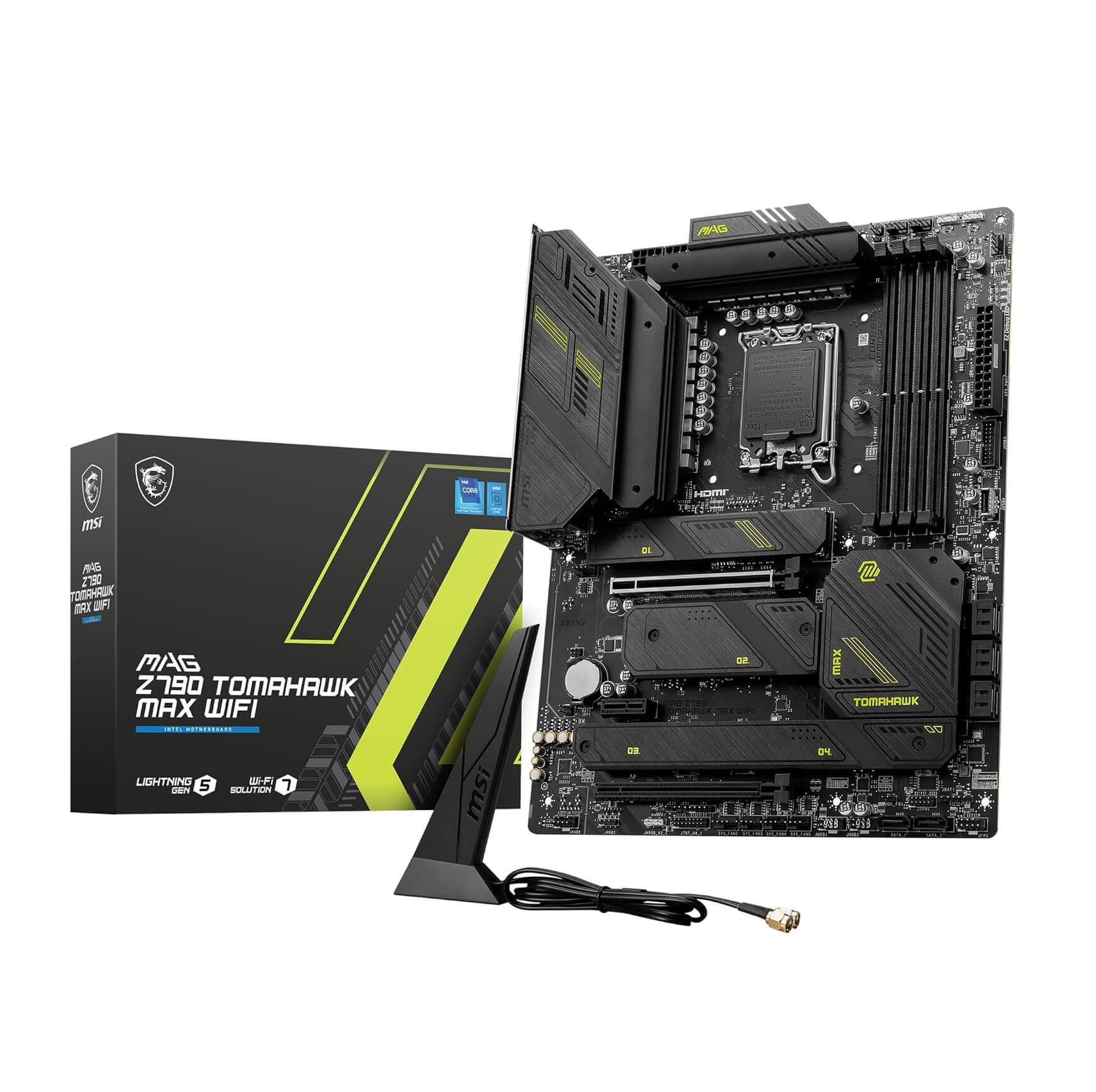

xMSI MAG Z790 Tomahawk MAX WiFi DDR5 Intel Z790 14th Gen LGA 1700 Gaming Motherboard
Product Overview
The MSI MAG Z790 Tomahawk MAX WiFi is a cutting-edge motherboard designed for gamers and high-performance PC builders. Part of MSI’s prestigious MAG (Arsenal Gaming) series, the Z790 Tomahawk MAX combines modern aesthetics with high functionality, supporting Intel's 14th and 13th Generation Core processors on the LGA 1700 socket. Built on the Z790 chipset, this motherboard is engineered to deliver superior performance, enhanced connectivity, and robust cooling solutions, making it a perfect choice for serious gamers and content creators alike.
One of the standout features of the Z790 Tomahawk MAX is its support for DDR5 memory, offering faster data transfer speeds and improved efficiency over the previous DDR4 standard. Coupled with PCIe 5.0 technology, the motherboard ensures that users can take full advantage of next-generation graphics cards and ultra-fast NVMe SSDs.
Networking capabilities are equally impressive, with integrated WiFi 6E and 2.5G LAN, providing high-speed and stable internet connectivity. Whether you’re streaming, gaming, or working on demanding applications, the MAG Z790 Tomahawk MAX ensures that your system stays connected and responsive.
Additionally, the board’s robust power delivery system, advanced cooling solutions, and customizable RGB lighting make it a versatile option for users looking to build a high-performance system that not only performs well but looks great too.
Product Description
The MSI MAG Z790 Tomahawk MAX WiFi motherboard is designed for gamers who want a platform that combines cutting-edge technology with an easy-to-use interface. It provides an excellent foundation for building powerful gaming rigs capable of handling the latest AAA titles and resource-intensive applications.
Aesthetic and Build Quality
The motherboard features a sleek and modern design, with a dark color scheme accented by customizable RGB lighting through MSI's Mystic Light technology. This gives users the flexibility to create a visually stunning build that matches their style.

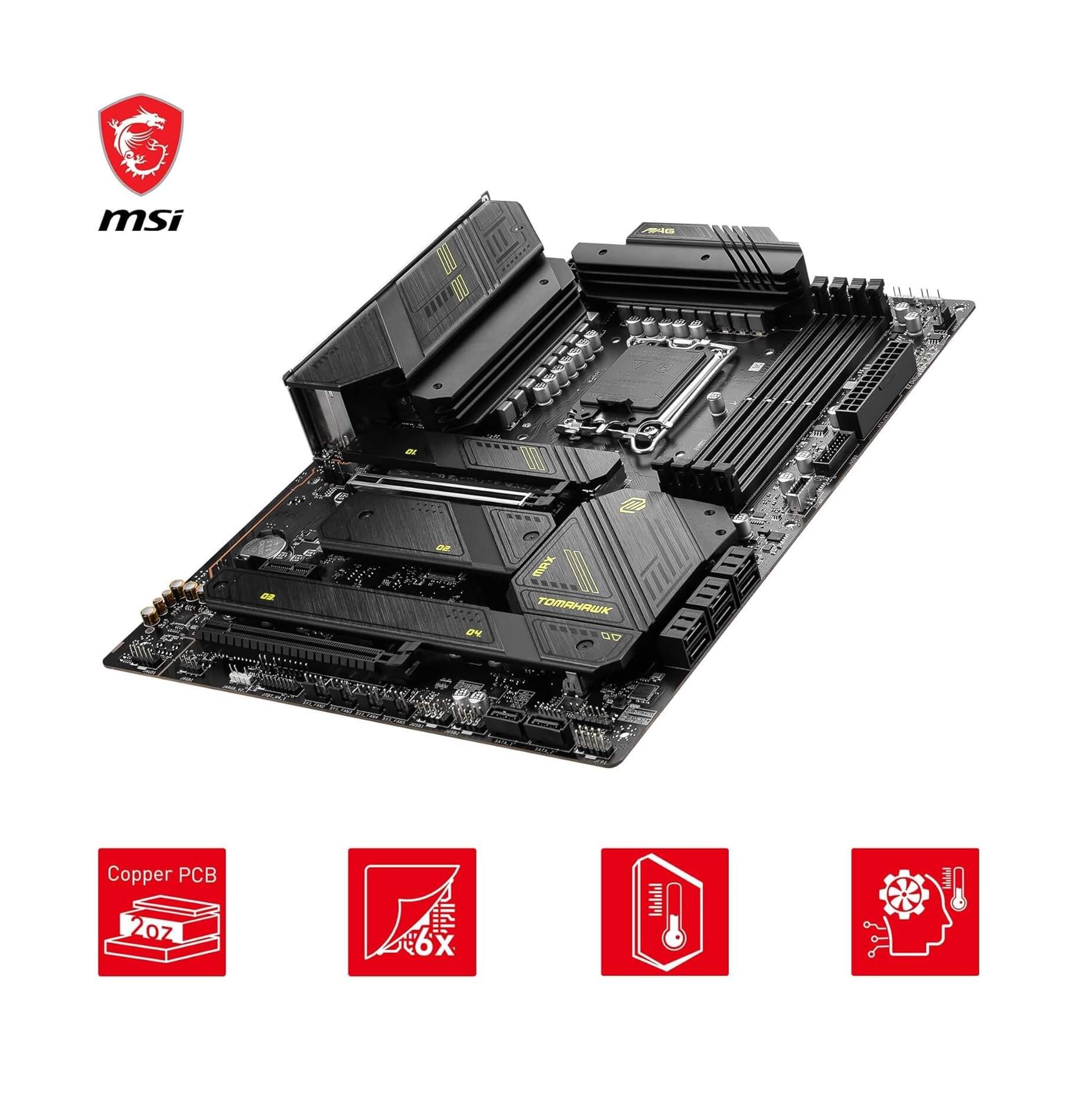

The PCB is constructed from high-quality materials, ensuring durability and longevity. It includes reinforced PCIe slots, which prevent GPU sag and improve stability when using heavy graphics cards. The MAG Z790 Tomahawk MAX is also designed with extensive heatsinks and thermal pads, optimizing heat dissipation and ensuring that the motherboard remains cool under pressure.
Performance Capabilities
With support for Intel 13th and 14th Gen processors, the MAG Z790 Tomahawk MAX motherboard can handle high core counts and aggressive overclocking. The 16+1+1 Duet Rail Power System provides a robust power supply to the CPU, allowing enthusiasts to push their processors to their limits.
The motherboard’s design emphasizes efficient power delivery and superior thermal performance, making it ideal for high-performance computing and gaming. Users can expect reliable performance, whether they are playing demanding games or multitasking with various applications.
Memory and Storage Options

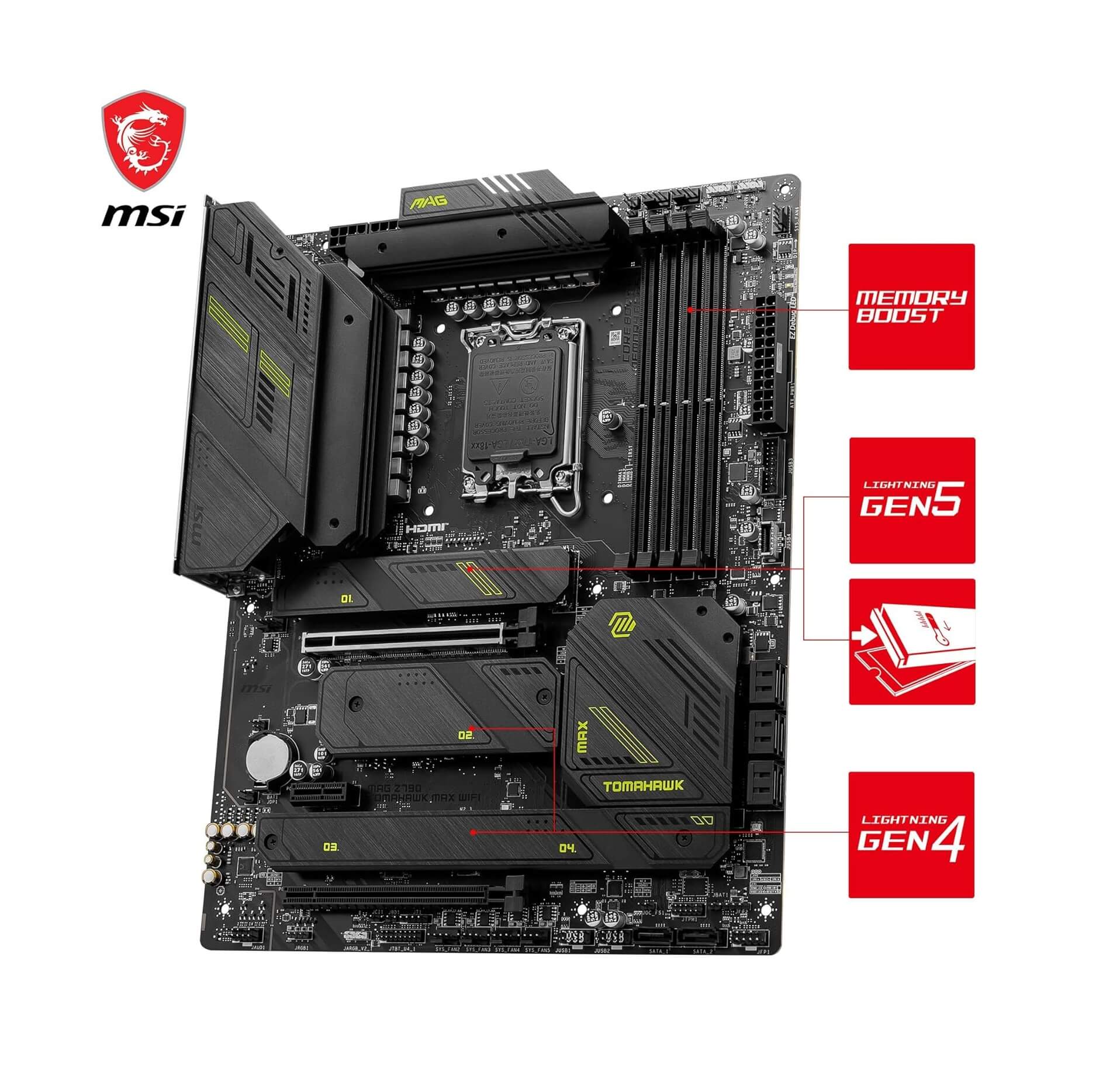

The MAG Z790 Tomahawk MAX supports DDR5 memory, allowing for speeds up to 7600 MHz (OC), significantly enhancing system responsiveness and performance. With four DIMM slots, users can install up to 128 GB of RAM, providing plenty of headroom for gaming, streaming, and content creation.

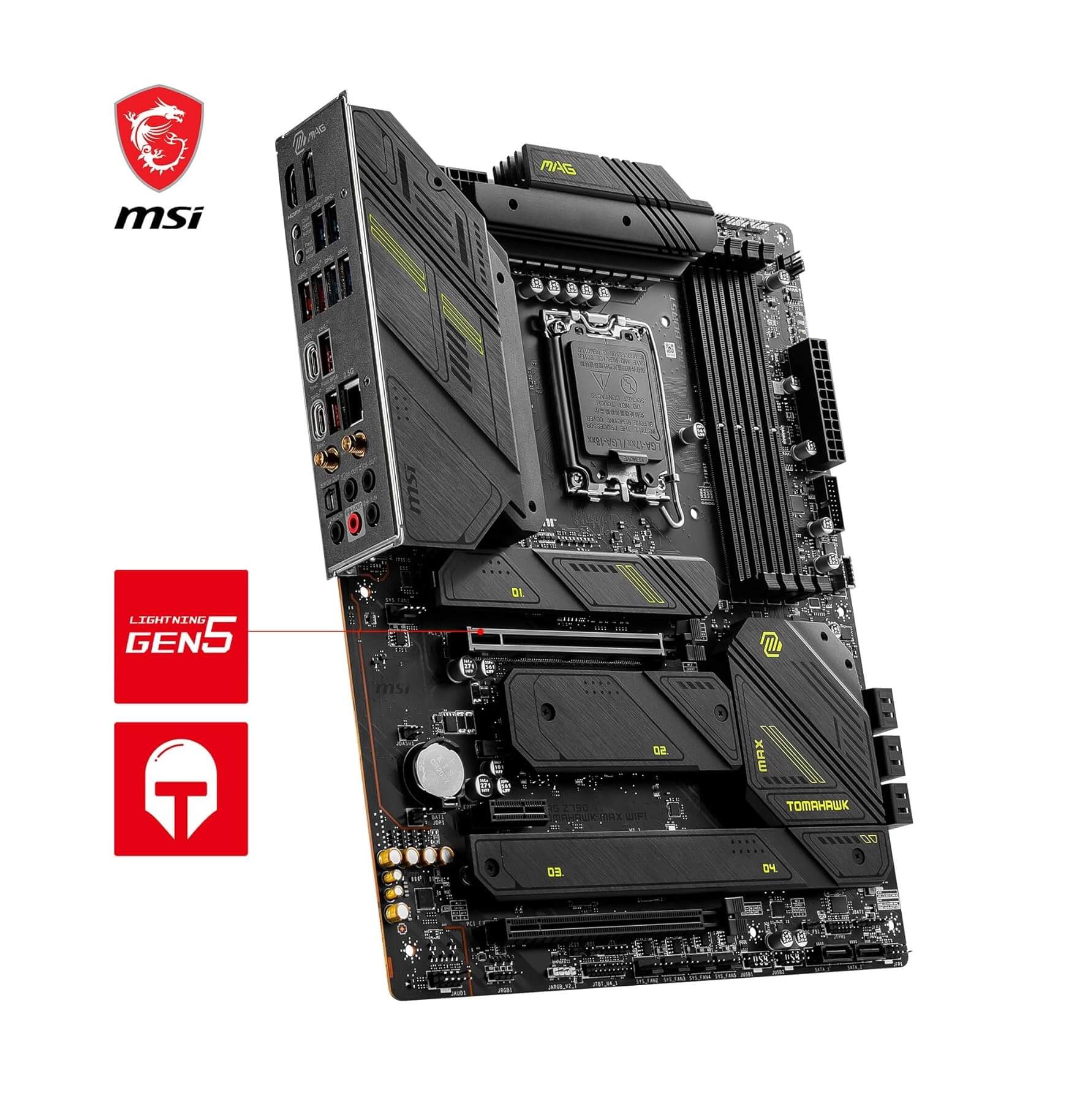

Storage options are abundant, with multiple M.2 slots that support both PCIe 4.0 and PCIe 5.0 NVMe SSDs. This ensures fast load times and efficient data transfer, making it perfect for gamers who need quick access to game files or professionals who handle large datasets. Additionally, the motherboard includes SATA III ports for traditional hard drives and SSDs, giving users flexibility in how they configure their storage.
Cooling Solutions
Efficient cooling is paramount in a high-performance gaming setup. The MAG Z790 Tomahawk MAX is equipped with an advanced cooling system featuring multiple PWM fan headers, extended heatsinks, and M.2 Shield Frozr technology. This ensures that the motherboard stays cool during intense gaming sessions, preventing thermal throttling and maintaining optimal performance.
Users can monitor and control their cooling solutions through MSI's Dragon Center software, allowing them to create customized fan profiles and ensure that their system remains quiet and cool under load.
Connectivity Features
The MSI MAG Z790 Tomahawk MAX motherboard excels in connectivity. Integrated WiFi 6E technology offers faster wireless speeds, improved range, and reduced latency, making it perfect for online gaming and streaming. The inclusion of a 2.5G LAN port ensures that wired connections are also ultra-fast and stable, providing the best of both worlds.

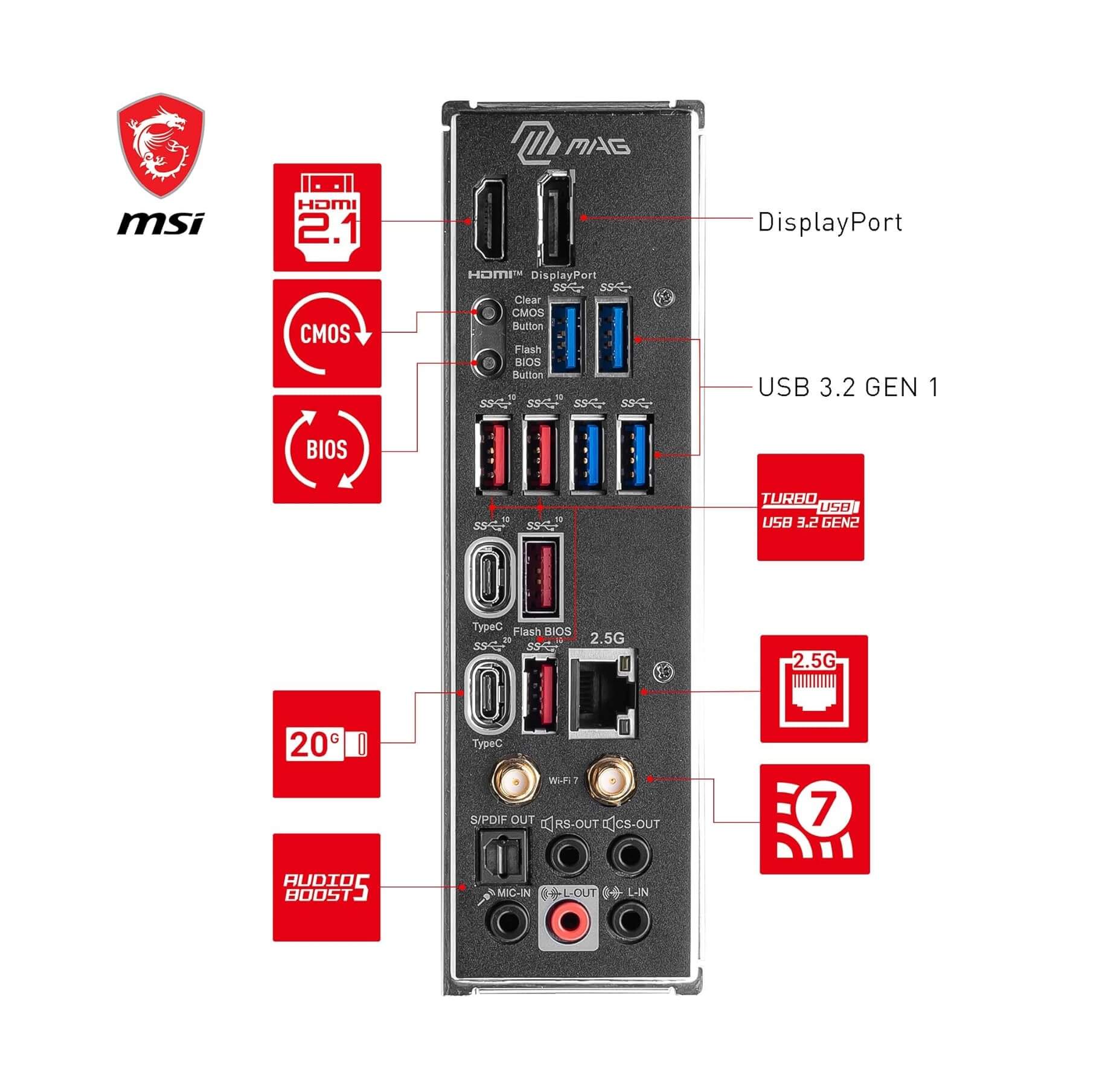

USB connectivity is plentiful, with multiple USB 3.2 Gen 2 ports, including Type-C options, allowing for high-speed data transfers and easy connections to peripherals. Additionally, the motherboard features HDMI and DisplayPort outputs, enabling easy connection to multiple displays.
Audio Experience
The MAG Z790 Tomahawk MAX comes equipped with MSI’s Audio Boost 5 technology, providing high-definition audio with immersive sound quality. This feature is particularly beneficial for gamers who want to enhance their experience with spatial audio or for content creators working on video projects. The motherboard also includes high-quality capacitors and an isolated audio PCB to minimize interference and deliver clearer sound.
Key Features of MSI MAG Z790 Tomahawk MAX WiFi DDR5 Motherboard

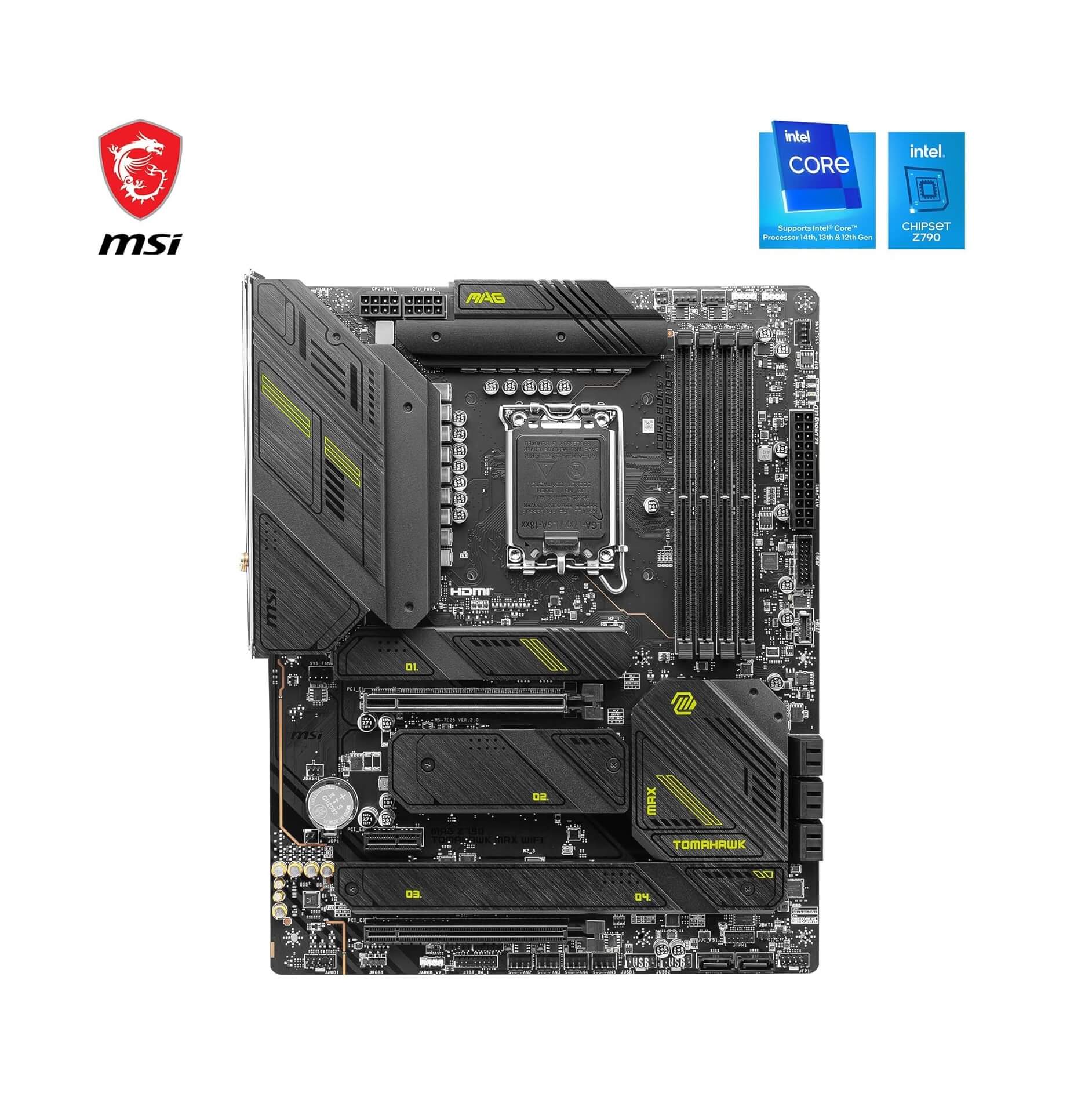

Intel Z790 Chipset with LGA 1700 Socket – Compatible with Intel’s 13th and 14th Generation Core processors.
DDR5 Memory Support – Supports up to 128 GB DDR5 RAM with speeds up to 7600 MHz (OC).
16+1+1 Duet Rail Power System – Provides robust and efficient power delivery for overclocking and high-performance use.
PCIe 5.0 and PCIe 4.0 M.2 Slots – Multiple slots for ultra-fast NVMe SSDs, ensuring quick load times and responsiveness.
WiFi 6E and 2.5G LAN – High-speed wireless and wired networking capabilities for low-latency gaming and reliable connections.
USB 3.2 Gen 2 Type-C – High-speed connectivity for external devices and peripherals.
Multiple M.2 Slots with Shield Frozr – Advanced cooling solutions for M.2 SSDs to maintain performance during high loads.
MSI Audio Boost 5 – High-definition audio for immersive gaming and content creation.
Enhanced Thermal Solutions – Extensive heatsinks and fan headers for effective cooling.
Mystic Light RGB – Customizable RGB lighting for personalized aesthetics.
Specifications
Form Factor ATX
Chipset Intel Z790
Socket LGA 1700
Supported CPUs Intel 13th/14th Gen Core, Pentium, Celeron
Memory Support DDR5, Dual Channel, up to 256 GB
Memory Speed Up to 7800 MHz (OC)
Expansion Slots 2x PCI-E x16 slot, 1x PCI-E x1 slot
Storage 4x M.2, 8x SATA 6G
*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.
*SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
*SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
USB Ports
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN 2.5G Ethernet
Wireless WiFi 6E, Bluetooth 5.3
Audio Realtek ALC897 7.1-channel HD Audio
Review
The MSI MAG Z790 Tomahawk MAX WiFi has garnered positive feedback from both consumers and tech reviewers alike for its outstanding performance, robust features, and attractive design. Users appreciate the motherboard's support for DDR5 memory, which significantly enhances gaming and multitasking performance compared to older standards. Many users have noted noticeable improvements in load times and system responsiveness, especially when paired with fast NVMe SSDs.
The 16+1+1 Duet Rail Power System is particularly praised for its stable and efficient power delivery. Overclocking enthusiasts have reported success in pushing their Intel processors to higher frequencies without encountering stability issues, thanks to the motherboard’s excellent thermal management and power distribution.
Networking capabilities, including WiFi 6E and 2.5G LAN, have also received high marks. Gamers value the low latency and high speeds, which are essential for competitive online gaming. The availability of multiple USB ports, including Type-C, provides convenient connectivity for various peripherals, making it easy to expand your setup.
However, some users have pointed out that while the motherboard is feature-rich, it could benefit from more PCIe slots for users with extensive expansion needs. This is a common limitation for ATX boards and may require additional consideration for those planning to use multiple graphics cards or expansion cards.
MSI's Dragon Center software has been well-received, offering an intuitive interface for monitoring system performance, customizing RGB lighting, and tweaking system settings. Users appreciate the ease of use and the comprehensive options available to optimize their gaming setup.
Overall, the MAG Z790 Tomahawk MAX WiFi stands out in the crowded motherboard market as a reliable and high-performing option that caters to gamers, content creators, and enthusiasts. Its combination of advanced technology, efficient cooling, and aesthetic appeal make it a worthy investment for anyone looking to build a next-gen gaming rig.
Warranty Details
The MSI MAG Z790 Tomahawk MAX WiFi DDR5 motherboard comes with a 2-year limited warranty, covering defects in materials and workmanship. This warranty reflects MSI's commitment to quality and customer satisfaction, giving users peace of mind knowing they can rely on support should any issues arise.
07-Days Refund/Return/Exchange Policy
MSI offers a 7-day refund, return, or exchange policy for the MAG Z790 Tomahawk MAX WiFi motherboard. Customers are encouraged to inspect the product upon receipt and, if it’s unopened and unused, they can return it for a full refund or exchange within this period. If any defects are found during this time, customers can also request a replacement or refund, ensuring a risk-free purchase experience.
Conclusion
In conclusion, the MSI MAG Z790 Tomahawk MAX WiFi DDR5 Intel Z790 14th Gen LGA 1700 Gaming Motherboard is a top-tier choice for gamers and PC enthusiasts seeking high performance, advanced features, and long-term reliability. With its support for the latest technologies, including DDR5, PCIe 5.0, and WiFi 6E, this motherboard is engineered to handle the demands of modern gaming and content creation.
The robust power delivery system, exceptional cooling solutions, and extensive connectivity options provide a solid foundation for building a powerful gaming rig or workstation. The customizable RGB lighting adds an aesthetic appeal, allowing users to create a visually stunning setup.
Backed by a 2-year warranty and a 7-day refund policy, the MAG Z790 Tomahawk MAX offers peace of mind and confidence in your purchase. Despite some minor limitations regarding expansion slots, it remains a strong contender in the gaming motherboard market, making it an excellent investment for anyone looking to build a future-proof and high-performance system.
