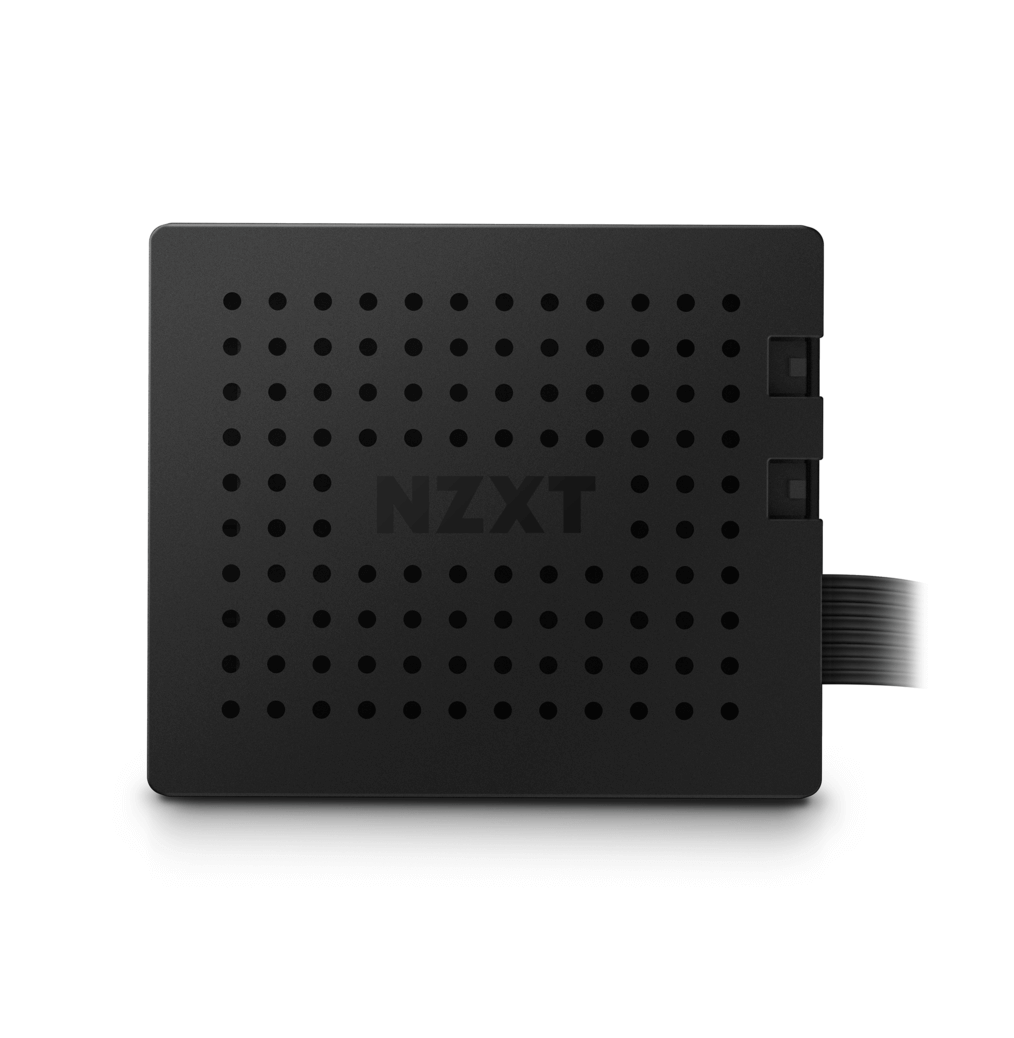

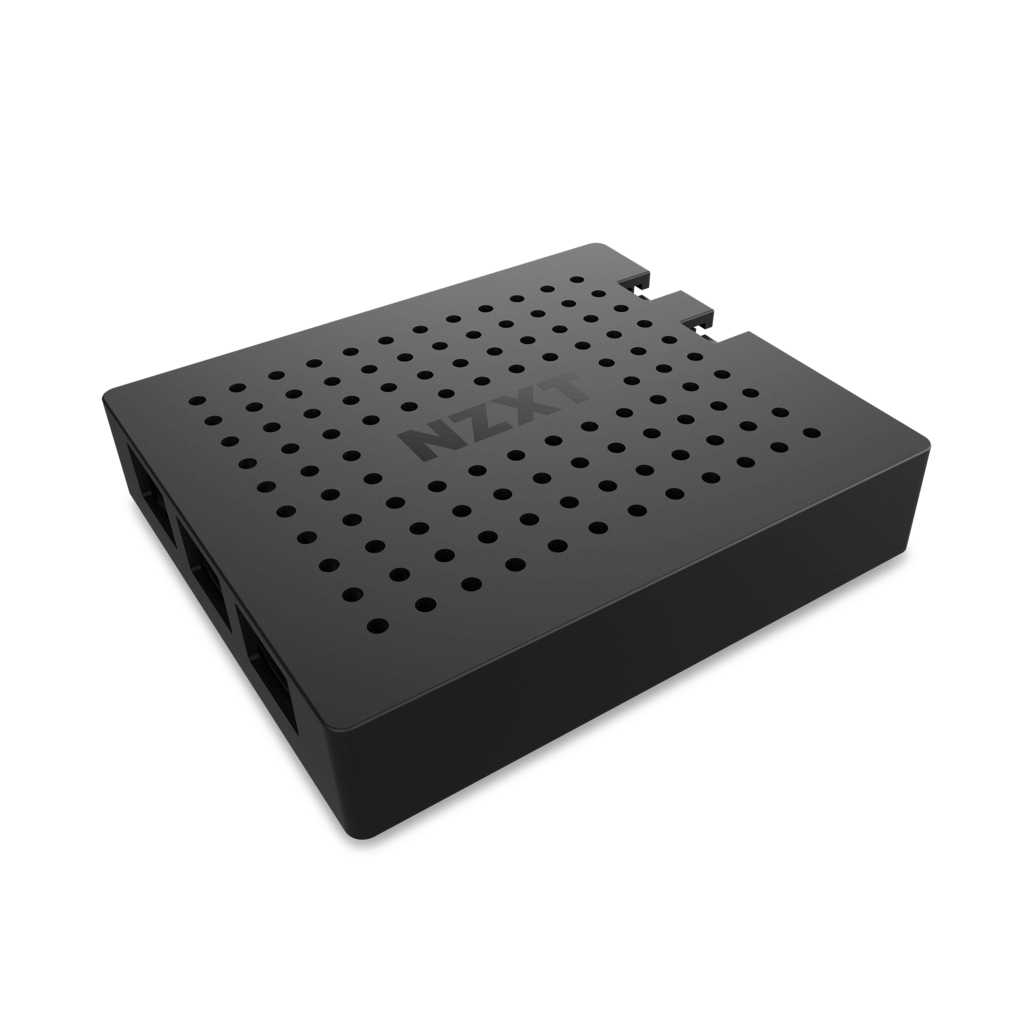

NZXT RGB & Fan Controller RGB Lighting & Digitally-Controlled Fan Channels

Product Details

Easily add digital fan and lighting control to any build which can be monitored and updated via NZXT CAM.

• Two NZXT RGB lighting channels, up to 40 individually addressable LEDs per channel, 80 LEDs total

• Lighting channels now support up to six* addressable RGB LED Strips or five Aer RGB Fans

• Three fan channels* with max 10W per channel output

• Mix and match any NZXT RGB LED accessories* while syncing all lighting accessories across different channels.

• The NZXT CAM application monitors and controls the build with presets or custom controls
  *200mm LED Strips. If a fan splitter is used, all fan control in the channel is regulated based on the fan connected to the 4-pin channel. Gen 2 and Gen 1 lighting products cannot be combined on a single channel.

Gain better control over your system with an improved microprocessor, providing CAM-powered control of two RGB lighting channels and three fan channels. Fan channels support either voltage-regulated or PWM fans for greater versatility.

Specifications

• Dimensions 74 x 15 x 64mm (WxHxD)

• Weight 69.2 g

• Mounting Magnet / Velcro

• Control Method NZXT CAM software

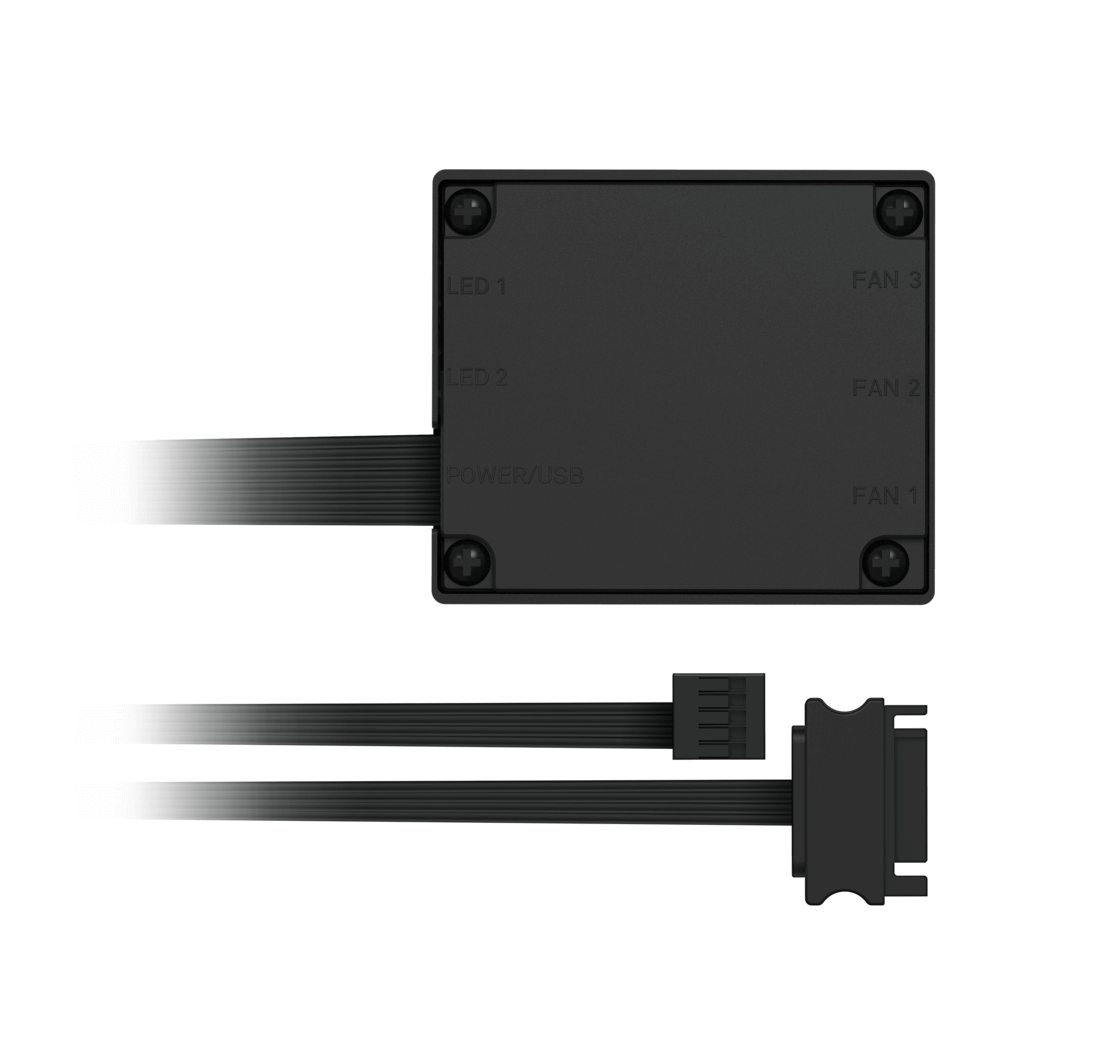

• Connections Internal-USB Cable – x1SATA Power Cable – x1Fan Splitter Cables - 3x 1 to 3 split

• Input Connector 12V DC / 2.6A

• Output Channel Voltage 5V DC

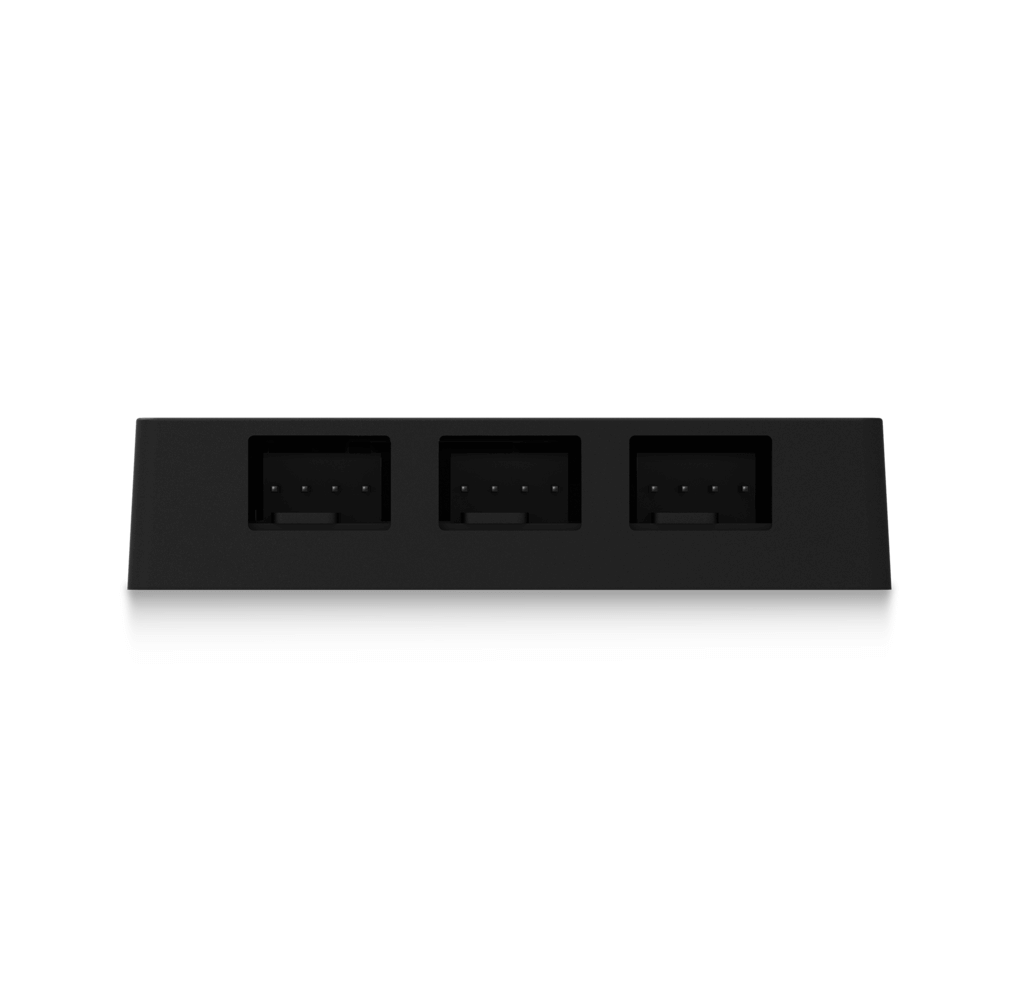

• Output Channels 2x RGB Lighting Channels3x Fan Channels

• LED Color RGB

• LED Modes Preset, Smart, Custom, Audio, Game

• Included Accessories 2x Magnet2x 3M Velcro

• Warranty 1 Year

• Packaging Information UNIT (RETAIL BOX)Dimensions(LxWxH): 166 x 70 x 39mmNet Weight: 100gGross Weight: 160gCartonUnits Per Carton: 20 pcsDimensions(LxWxH): 295 x 205 x 195mmNet Weight: 2.2 kgGross Weight: 3.6kg

• Model Number AC-2RGBC-B1
