Tone Winner AD-8300PA 11 Channels Home Theater Pure Power Amplifier

Product Specifications

Audio Specifications (High-Powered Single Channel Modules): LCR Channels & Surround Channels

• LCR Channels 350 Watts & LS,RS,LBS,RBS 155 Watts RMS/channel; 20 Hz – 20 kHz; THD Less than 0.1%; 8 Ohms; one channel driven

• LCR Channels 605 Watts & LS,RS,LBS,RBS 276 Watts RMS/channel; 20 Hz – 20 kHz; THD Less than 0.2%; 4 Ohms; one channel driven

• LCR Channels 320 Watts & LS,RS,LBS,RBS 150 Watts RMS/channel; 20 Hz – 20 kHz; THD Less than 0.1%; 8 Ohms; Two channel driven

• LCR Channels 516 Watts & Surround Modules 207+ Watts RMS/channel; 20 Hz – 20 kHz; THD Less than 0.1%; 4 Ohms; Two channel driven

• LCR Channels 240+ Watts & Surround Modules 105+ Watts RMS/channel; 20 Hz – 20 kHz; THD Less than 0.1%; 8 Ohms; all channel driven

3000W Digital Power Supply

It supports up to 3,000 watts switched mode power supply to ensure powerful driving for multiple entertainments including dynamic movies and music

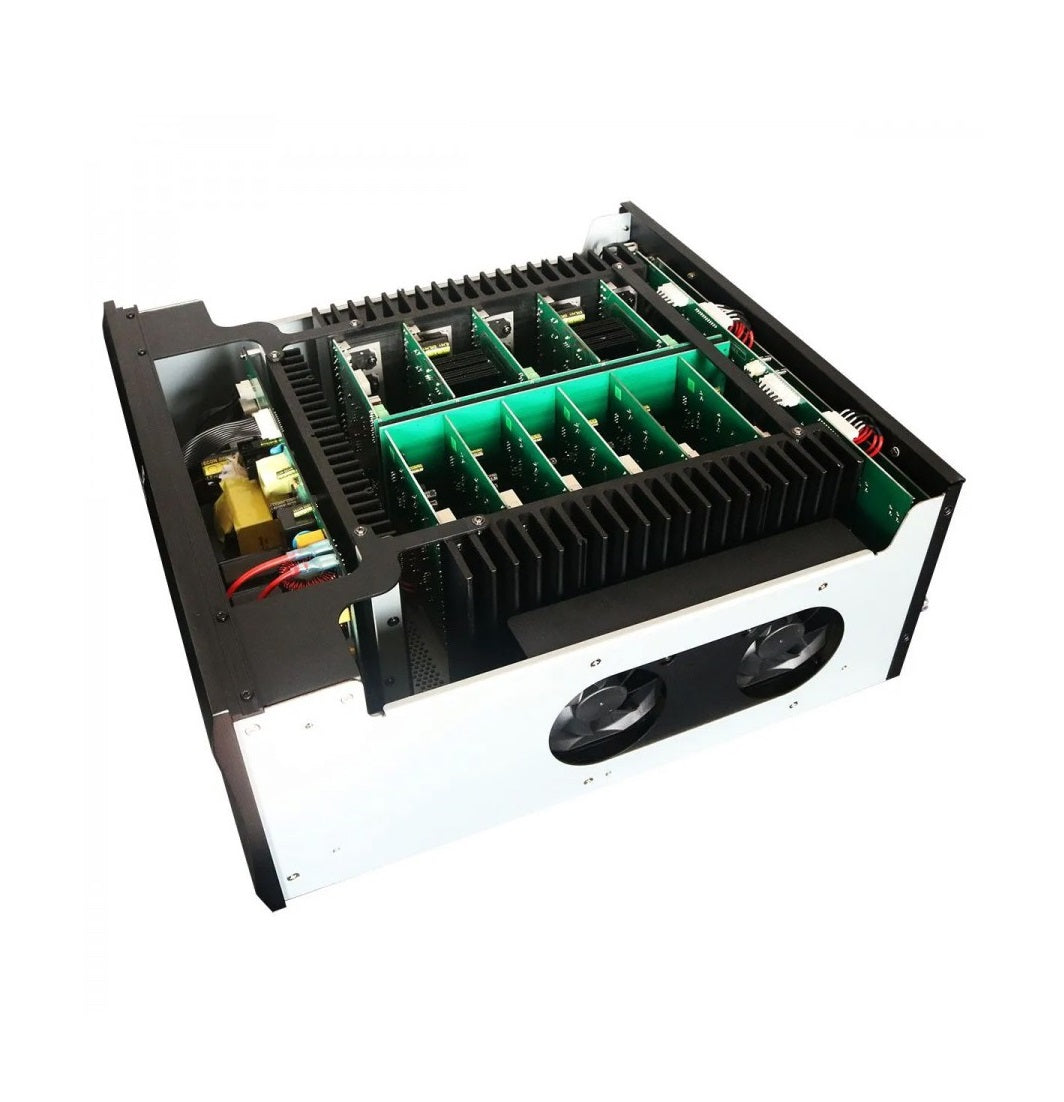

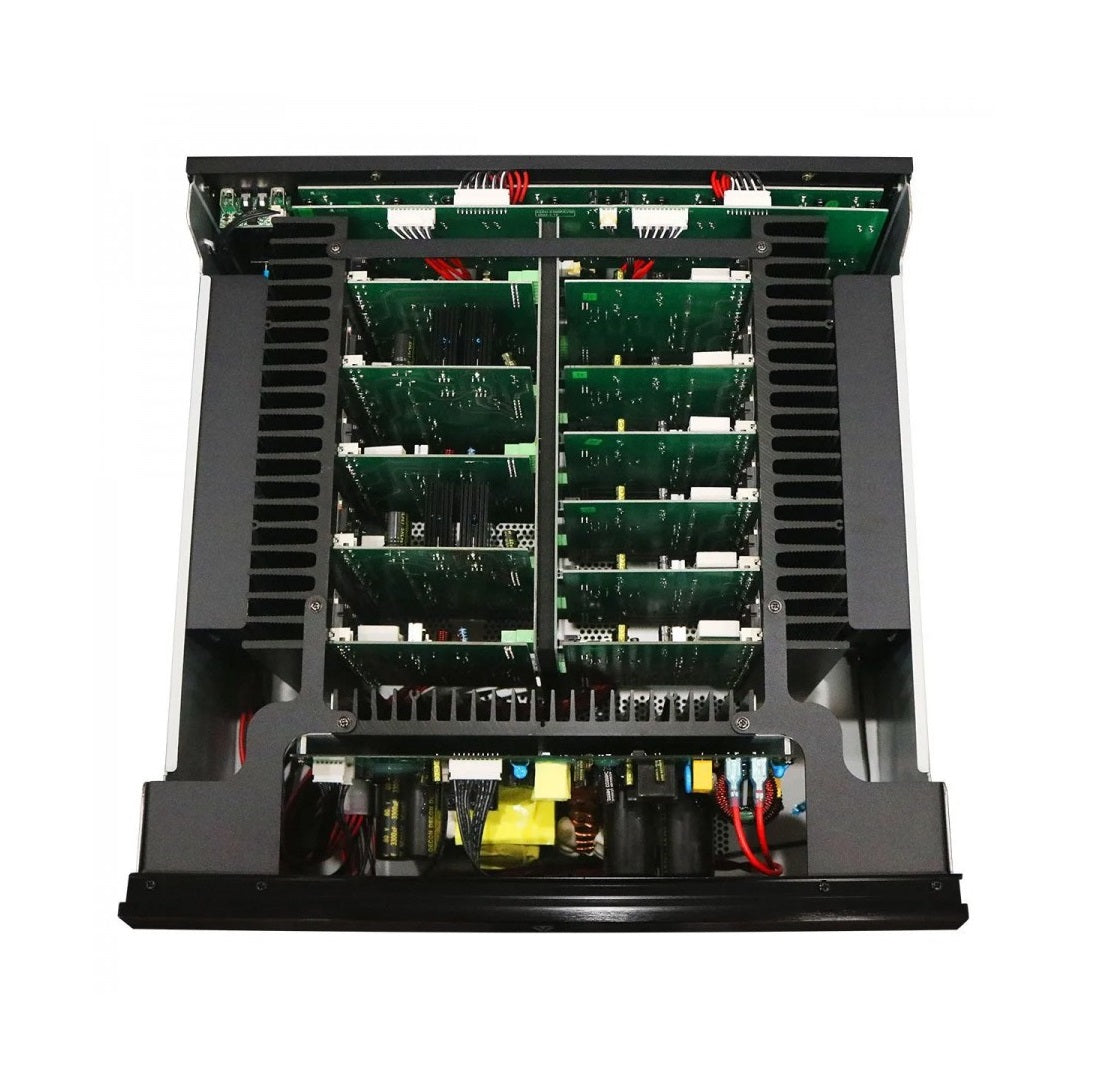

11 CH Independent Amp Circuits

It adopts independent Hi-Fi circuit modules for all 11 channels, which works with high power transistors to offer 45A current output.

Five Circuit Protections

It adopts five types of circuit protections to make sure safe operation and long-term reliable working.

5V Trigger

It supports 5 volts trigger in & out to connect with other devices to achieve smart synchronous control.

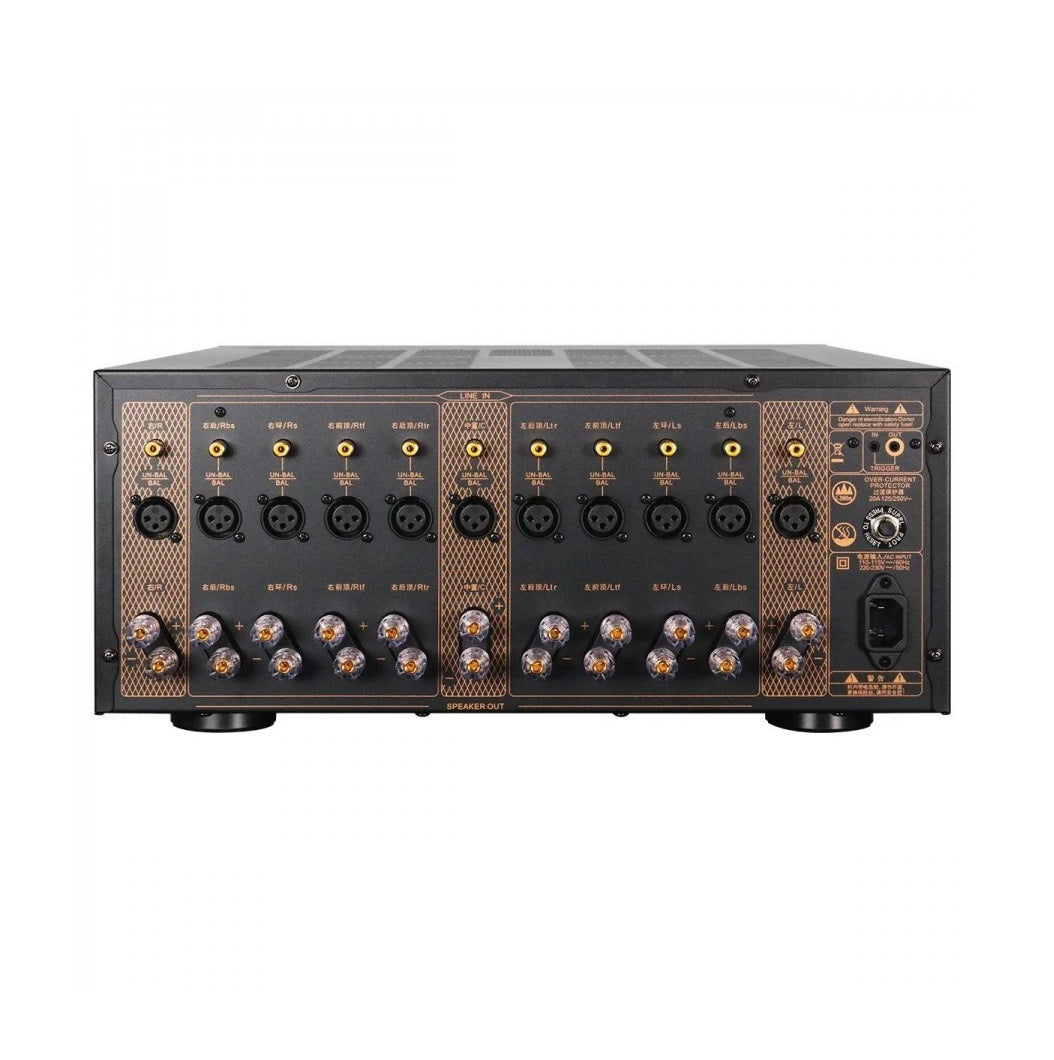

Overcurrent Protector

The overcurrent protector of the back panel is designed to avoid damage from overcurrent, overvoltage and short circuit. Just press the protector button for fast restoration after tripping.

Air Cooling System

It adopt fans air blowing to dissipate heat and expand the lifetime of components for long term service.
