Description
x
Product Features
- Support Dolby Atmos DolbyTrue HD & all the downward audio formats.
- Support DTS:X, DTS-Master & all the downward HD audio formats.
- Support HDME2.0 & HDCP2.2.
- Support 4K/60Hz,RGB 4:4:4, 18GHz full bandwidth video signal, support Dolby Vision and HDR 10+ video signal.
- Support lossless formats:APE,FLAC,WAV.
- Support compress formats:MP3, WMA .
- Support optical/coaxial/USB audio signal input.
- Support 2160P60,1080P60 & all the downward video formats.
- Support analog,optical,coaxial,U disk,TF card,PC,6 group HDMI2.0.
Specifications
|
Parameters
|

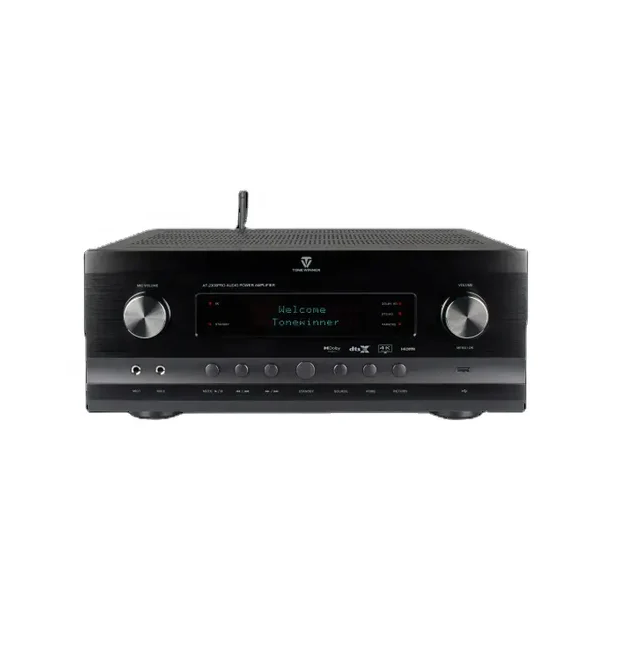

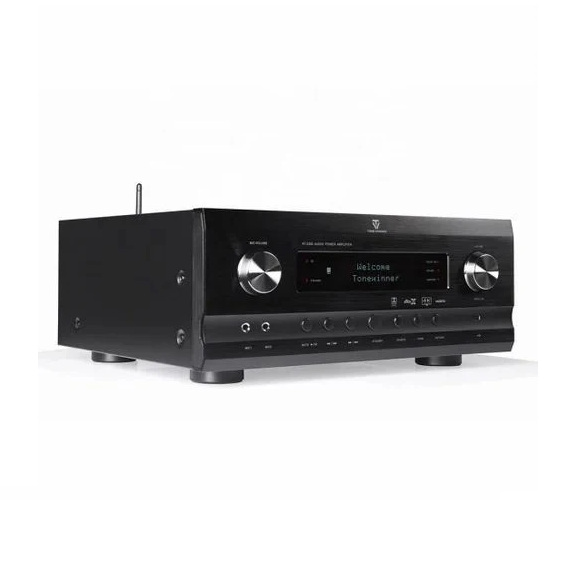

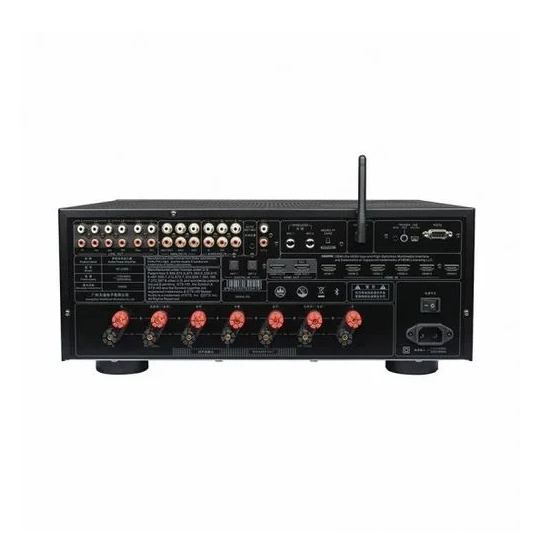

AT-2300PRO
|
THD
|
=0.05%
|
|
Channels
|
5.1.2/7.1.2
|
SNR
|
=90dB
|
|
Frequency
|
20Hz-20KHz(+1/-1dB)
|
Power Consumption
|
1000W
|
|
Power Output
|
150W per channel, one channel driven, into 8 Ohms,
at =0.1% THD. |
Whole Unit Gain
|
=40dB
|
|
Impedance
|
8O
|
Power supply
|
~110V/220V
|
|
G.W
|
17.8Kg
|
N.W
|
15.5Kg
|
|
Size
|
431x160(179)x371(408)mm
|
Packaging Size
|
553x270x498mm
|
|
Applicable Places
|
living room,bedroom
|
